Aircraft Ground Power Unit

Description

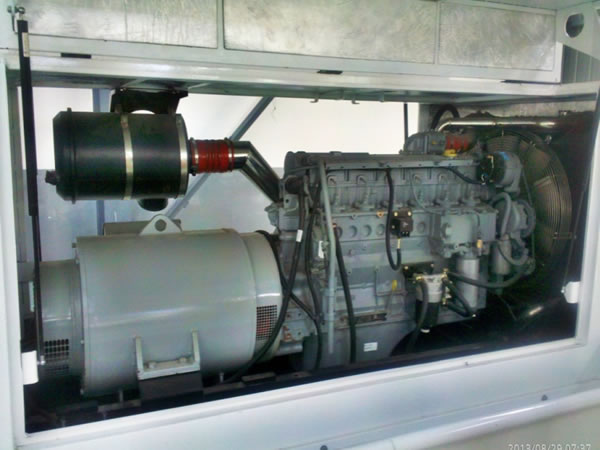

The HD-GPU90/120/140 air ground power unit is equipped with a brushless intermediate frequency alternator driven by diesel engines, and are used to provide power for both military and civil aircraft.

The air ground power unit has a truck-trailer chassis loading mode (PT drag-and-drop power car) and a vehicle chassis loading mode (PQ chassis power car). The manufacturing and use of the GPU conforms to both civil aviation standards and AHM.

• This air ground power unit can check and repair all unit parts with no need to dismantle the encloser, due to its simple structure.

  •

• The air ground power unit features a simple and convenient adjustment, without having to enter the GPU adjustment coefficient, due to the vehicle body’s rear mounted control panel.

  •

• This air ground power unit has a slot on the left and right edges for cable placement.

  •

• This aircraft power supply operates the front wheel mechanical brake with the use of a drawbar.

  •

• The GPU fuel tank has a 300 liter capacity, ensuring it can run continuously for up to 8 hours.
• AC power unit wheels are light-weight with a small turning radius./li>
• TThe shell of the GPU satisfies ICAO and has a corrosion resistance to PAO, mineral and other lubricants. It also uses ICI “3C3B” technology from the UK (2 coats of primer, finish).
• The generator set uses a self-made chassis that meets civil aviation industry standards.

• Optional chassis :ISUZU 600P /GB 4、GB5 Chassis、JMC GB4 Chassis
• Optional engines: DCEC ISBE4&DEUTZ, etc.
• Optional generators: LanZhou generator Set & JiangYin generator
• Optional control systems: Siemens Control System, Schneider Control System, China control system.
